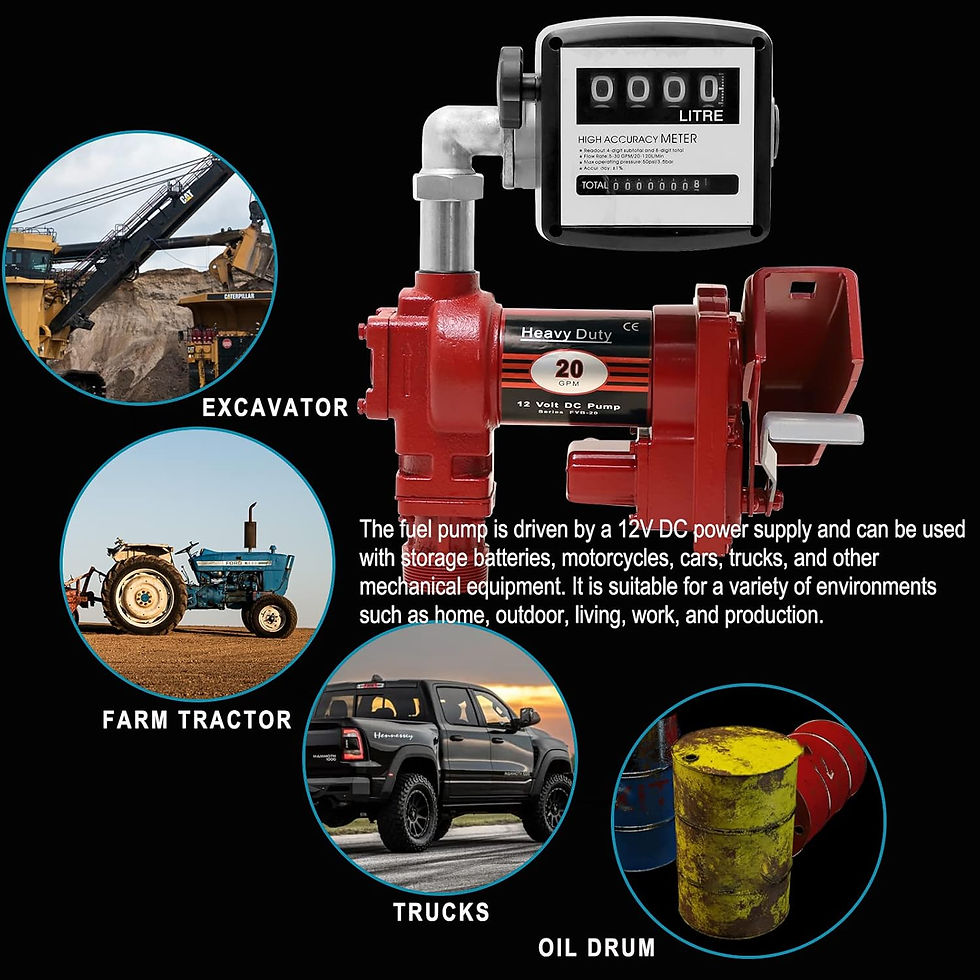

20GPM 12V DC Fuel Transfer Pump Gasoline Pump with Nozzle Kit for Gas Diesel Kerosene Red with Flow Meter

About this item

• MULTI-FUNCTIONAL -- This transfer pump provides safer and more efficient transportation of gasoline, diesel, kerosene, bio-diesel and similar fuels or oils. Suitable for lawn tractors, boats, motor boats, snowmobiles and trimmers, etc.

• FITMENT -- For Transfer of Gasoline, Diesel Fuel, Kerosene, Mineral Spirits, Heptane, Hexane, E15, Biodiesel, and Similar Fuels or Oils.

• SPECIFICATIONS -- Flow Rate: 20 GPM, Integral inlet screen, 2" male NPT on bung adapter,1" of hose with nozzle, Security:pump equipped for padlocking.Ball bearing construction, no lubrication,Dimension:14" wide X 9" high X 5" deep.

• PADLOCKING -- Your pump nozzle can be pad locked to the pump for added security.With the pump turned off, and the nozzle in the stored position, a padlock can be inserted through the locking link and the nozzle handle. The locking link is located on the nozzle side of the pump, and can be pivoted into position to work with a variety of nozzles.

• WIRING INSTRUCTIONS -- Remove pump's electrical junction box cover and straighten the 3 wires to make the stripped wire ends accessible outside of the junction box. Strip 1 /2 inch of the insulation from the ends of the red and black cable wires,Using the furnished wire nuts,connect these wires to the pump wires matching to colors. Be sure no bare wire is exposed.

19 x 18x 12inches
